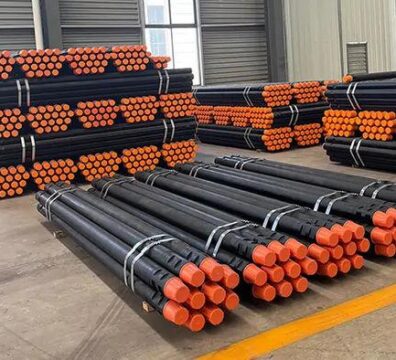

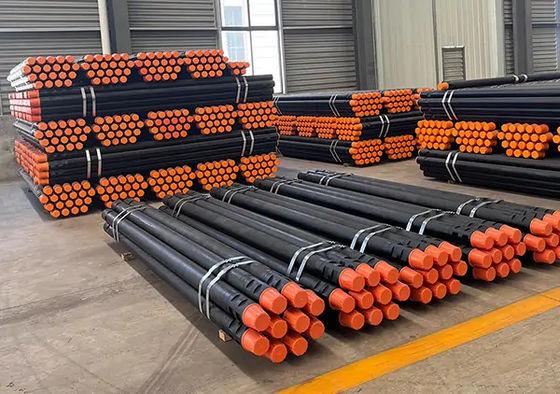

DTH Drill Pipes

What Are DTH Drill Pipes?

DTH drill pipes, also known as drill rods or drill tubes, form the drill string between the drilling rig and the DTH hammer. They are manufactured from high-strength alloy steel to withstand the demanding conditions of percussion drilling, high torque, and abrasive environments.

The drill pipes serve as a passage for compressed air, which powers the DTH hammer and removes drill cuttings from the borehole.

Functions of DTH Drill Pipes

Air Transmission

Deliver compressed air from the compressor to the DTH hammer.

Torque Transfer

Transmit rotational force from the drilling rig to the hammer and drill bit.

Feed Force Transfer

Carry the thrust force required to advance the drill bit into the rock.

Structural Support

Support the weight of the drill string and maintain borehole alignment.

Main Components of a DTH Drill Pipe

Pipe Body

Manufactured from high-strength seamless alloy steel tubing for durability and strength.

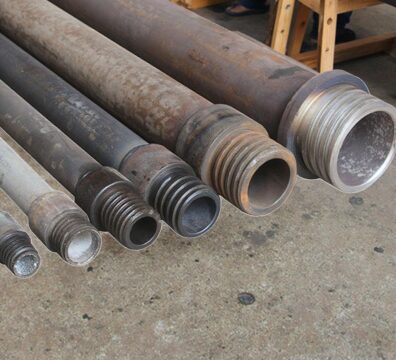

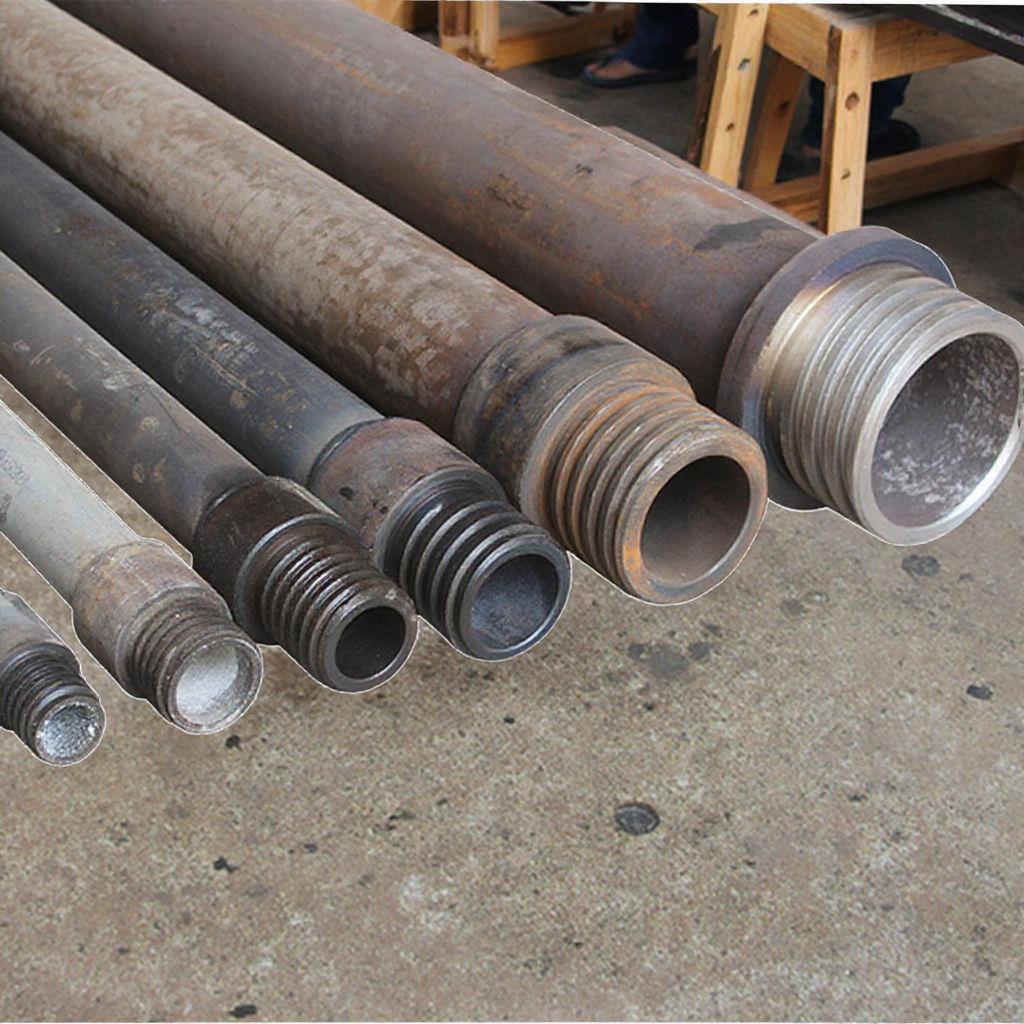

Tool Joints

Threaded connections welded or friction-welded to each end of the pipe.

Male Thread (Pin)

External threaded connection used to join drill pipes.

Female Thread (Box)

Internal threaded connection that receives the pin end of another pipe.

Internal Bore

Allows compressed air to flow freely to the DTH hammer.

Common Thread Types

DTH drill pipes are available with various thread designs to suit different drilling applications.

Common Drill Pipe Sizes

Advantages of Quality DTH Drill Pipes

High Strength

Designed to withstand high impact loads and torque.

Longer Service Life

Heat-treated materials provide excellent wear resistance.

Efficient Air Flow

Optimized internal bore improves hammer performance.

Reliable Connections

Precision threads reduce the risk of joint failure.

Improved Productivity

Consistent performance minimizes downtime.

Applications

Mining

• Blast hole drilling
• Production drilling
• Open-pit operations

Quarrying

• Bench drilling
• Aggregate production

Construction

• Foundation drilling
• Piling projects
• Infrastructure development

Water Well Drilling

• Borehole drilling
• Geothermal wells

Exploration

• Geotechnical drilling
• Mineral exploration

Common Causes of Drill Pipe Wear

• Thread damage
• Excessive torque
• Poor lubrication
• Corrosion
• Abrasive drilling conditions
• Improper handling
• Fatigue from repeated drilling cycles

Regular inspection and maintenance help prevent premature failures.

Maintenance Tips

• Clean threads before every connection.
• Apply high-quality thread grease.
• Inspect threads for wear or damage.
• Avoid cross-threading during assembly.
• Store pipes in a dry, protected area.
• Replace worn tool joints when necessary.
• Follow recommended drilling parameters.

Benefits of Proper Drill Pipe Selection

Selecting the correct drill pipe helps:

• Increase drilling efficiency
• Improve hammer performance
• Reduce operating costs
• Extend tool life
• Enhance hole quality
• Minimize equipment downtime

Industries Served

• Mining
• Quarrying
• Construction
• Water Well Drilling
• Geothermal Drilling
• Exploration Drilling
• Civil Engineering
• Infrastructure Development

Conclusion

DTH drill pipes are essential components of any Down-the-Hole drilling system, providing the strength, durability, and air transmission required for efficient drilling operations. Manufactured from high-quality alloy steel and engineered for demanding conditions, DTH drill pipes contribute significantly to drilling productivity, tool life, and overall project success.
